Thrust Test Rig

Developed and manufactured a propeller thrust test rig for Aerospace SAE at Berkeley.

Aerospace SAE Berkeley Engineering Mechanical Design Manufacturing
View Onshape Model GrabCAD Link

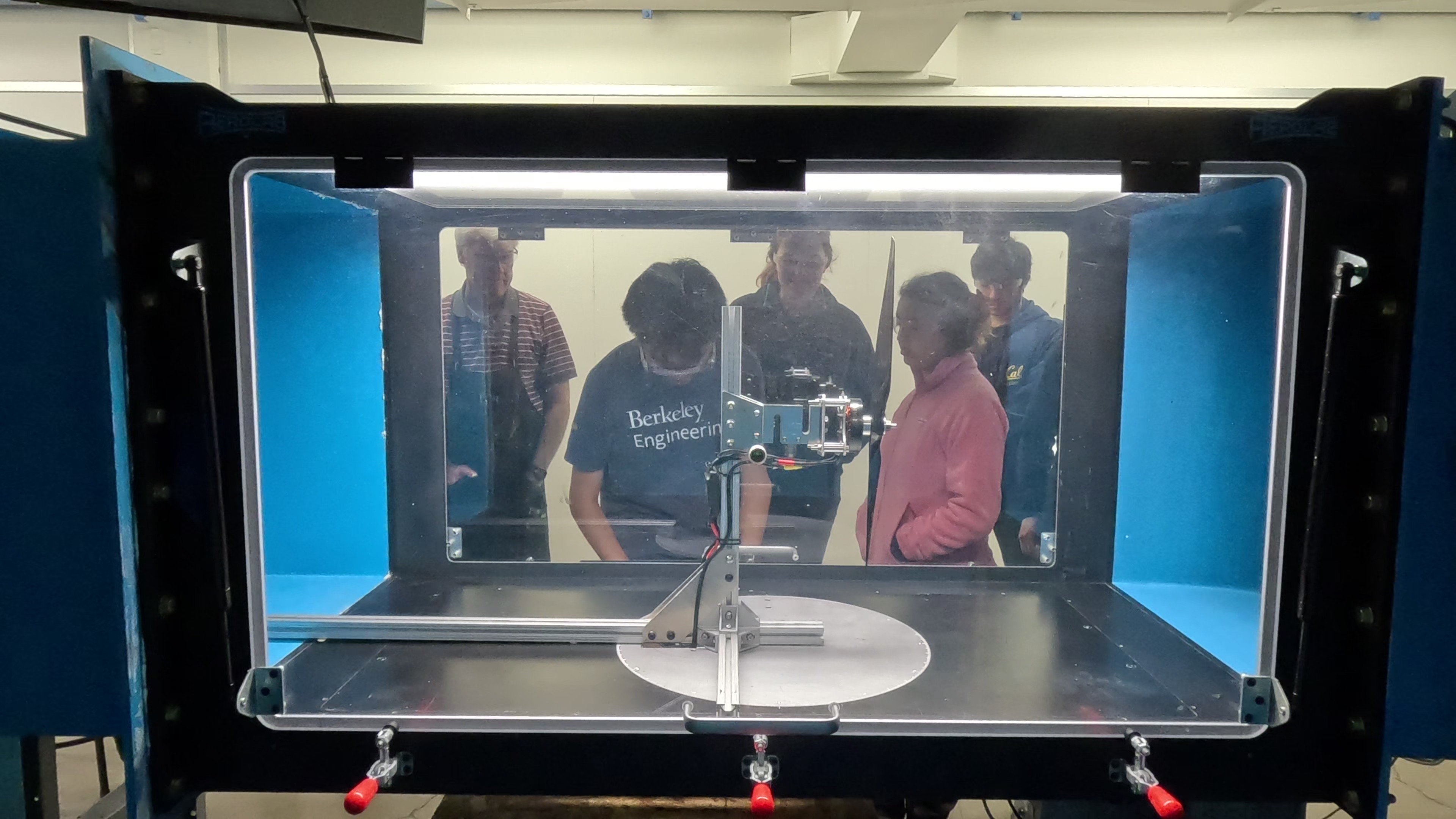

Wind Tunnel Testing

Dynamic airflow thrust testing using the AEROLAB wind tunnel in Hesse Hall.

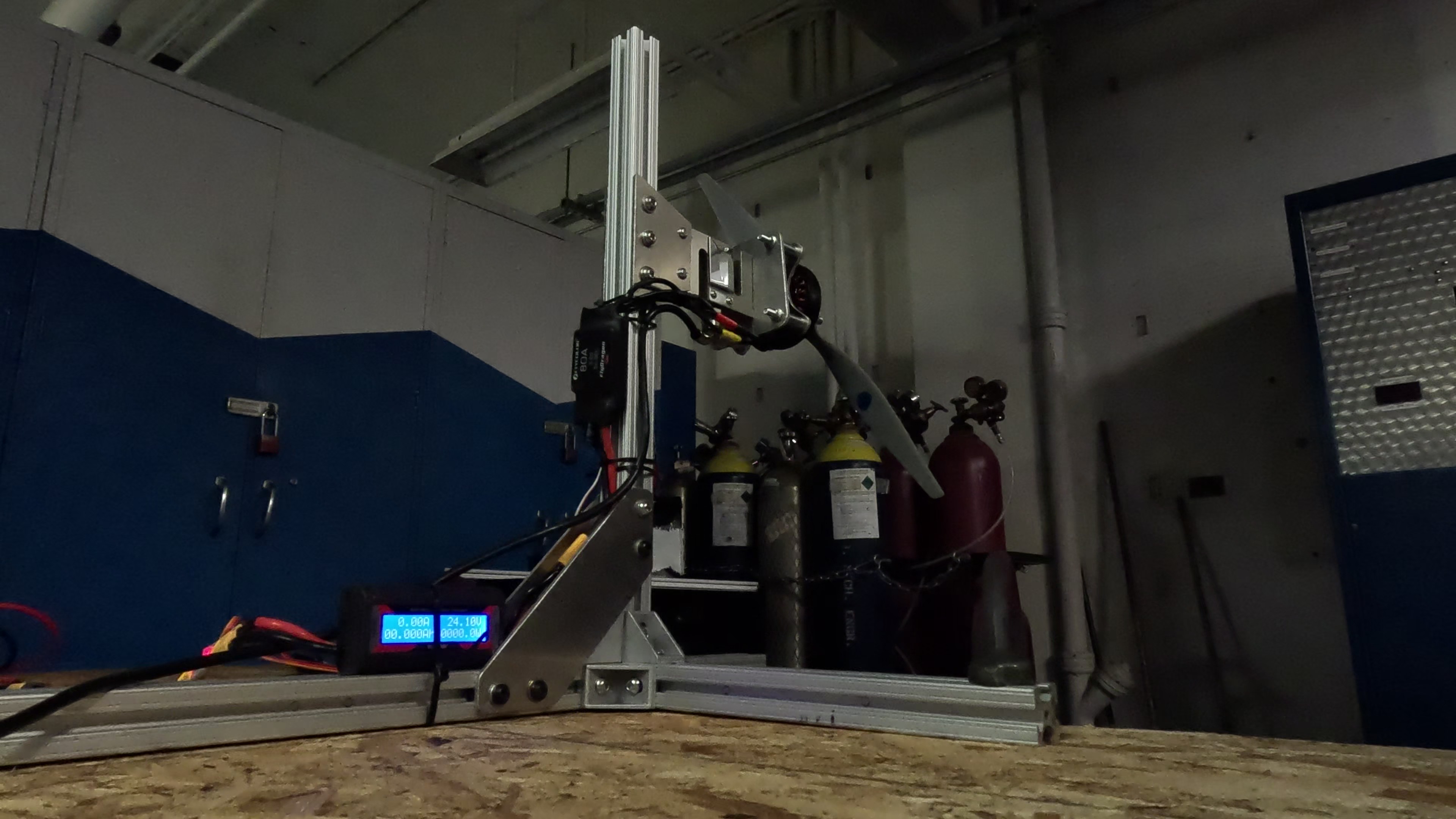

Static Airflow Testing

Static airflow thrust testing in Hesse Hall.

Manufacturing Load Cell Frame Mount in Etcheverry Machine Shop

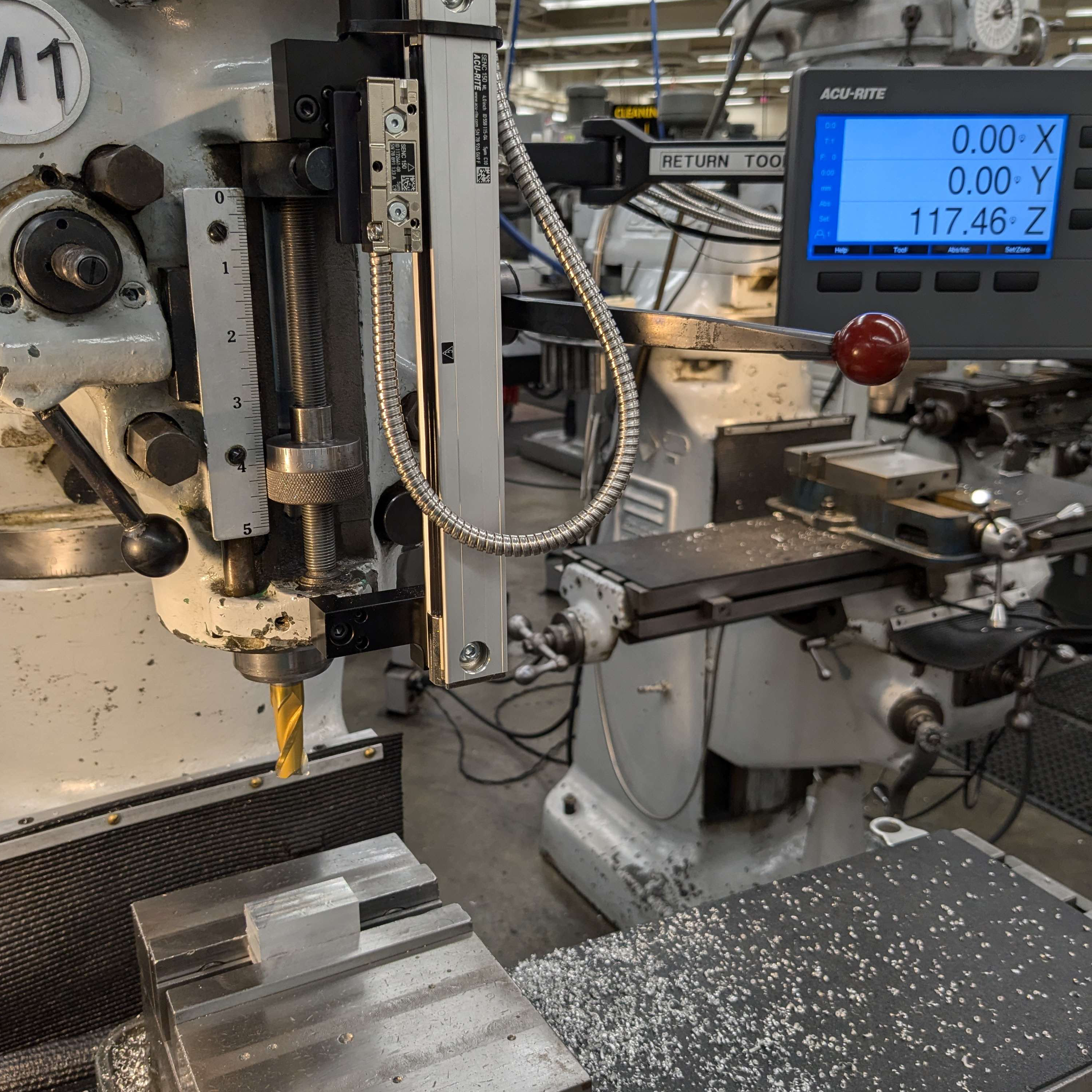

Starting End Mill Passes

Starting End Mill Passes

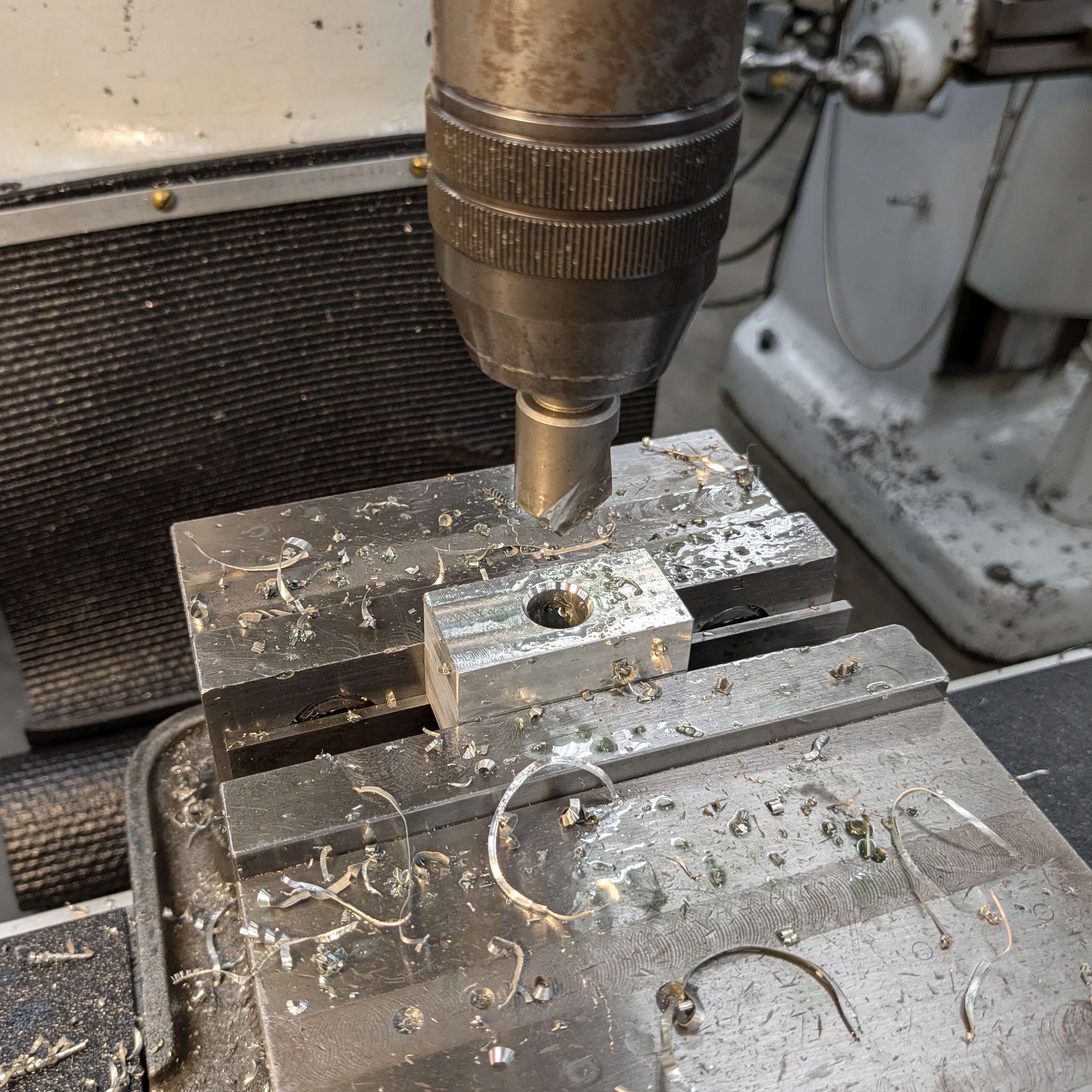

Chamfering M12 Hole

Chamfering the M12 Clearance Hole

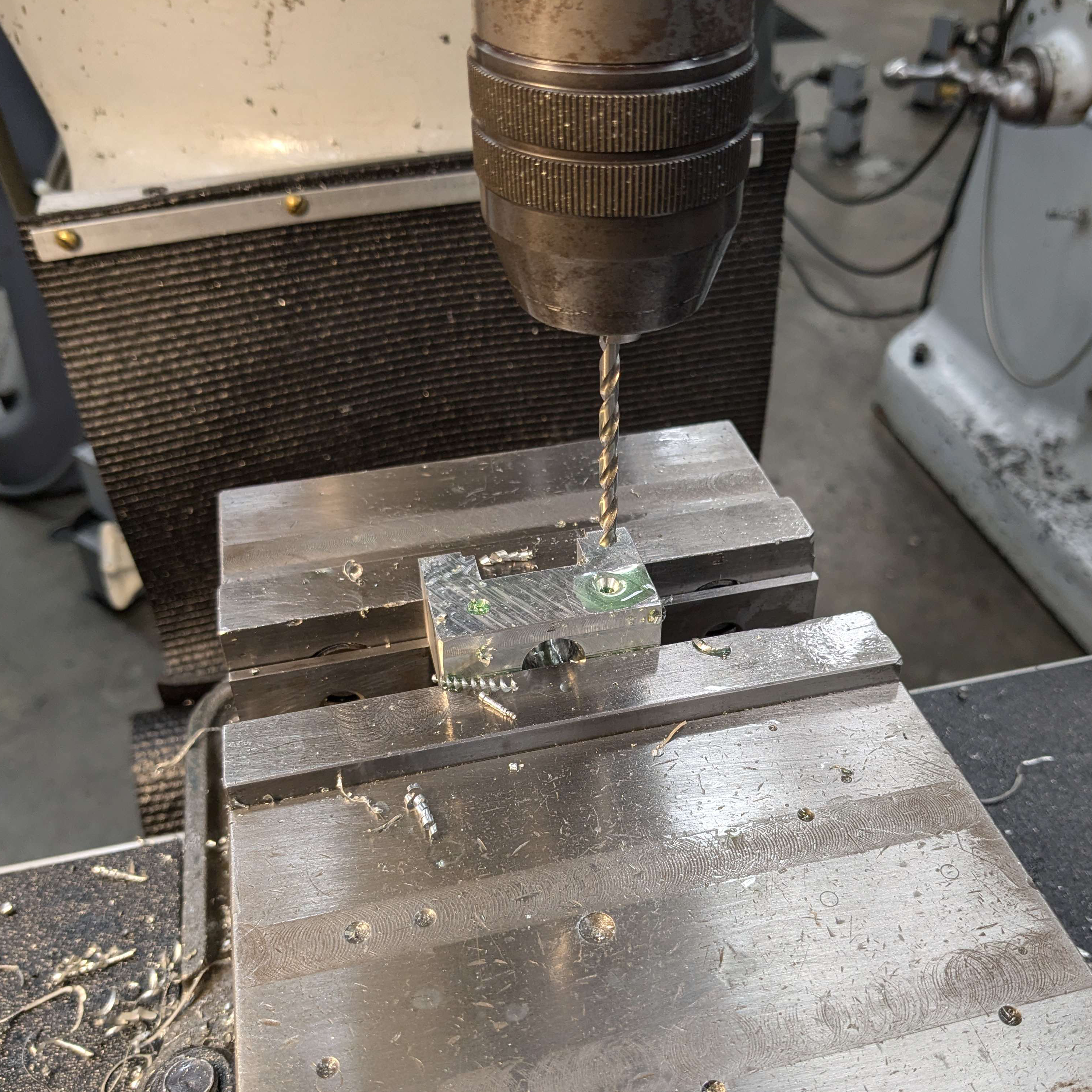

Drilling Mounting Holes

Drilling Side Mounting Holes

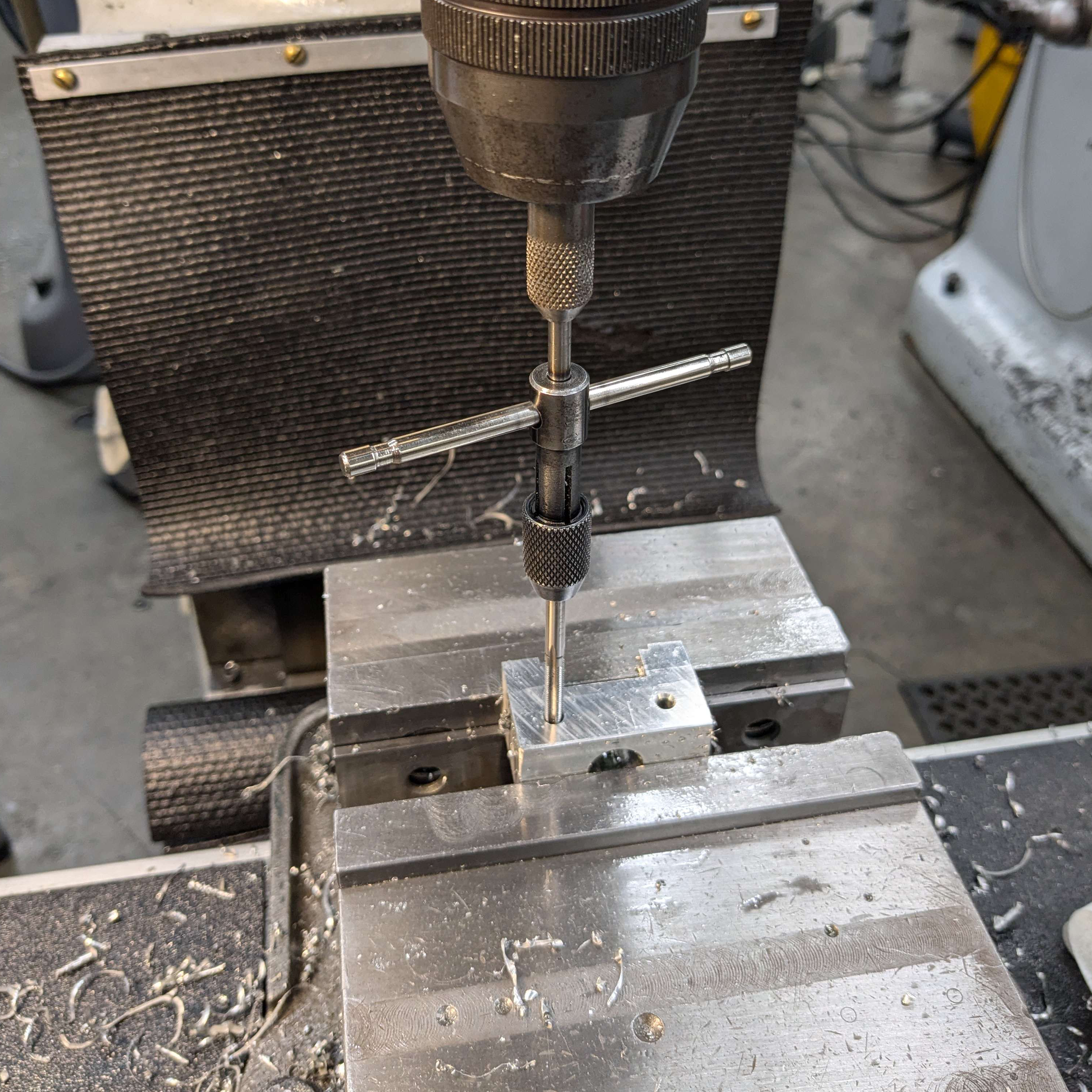

Tapping M5 Threads

Tapping M5 Threads

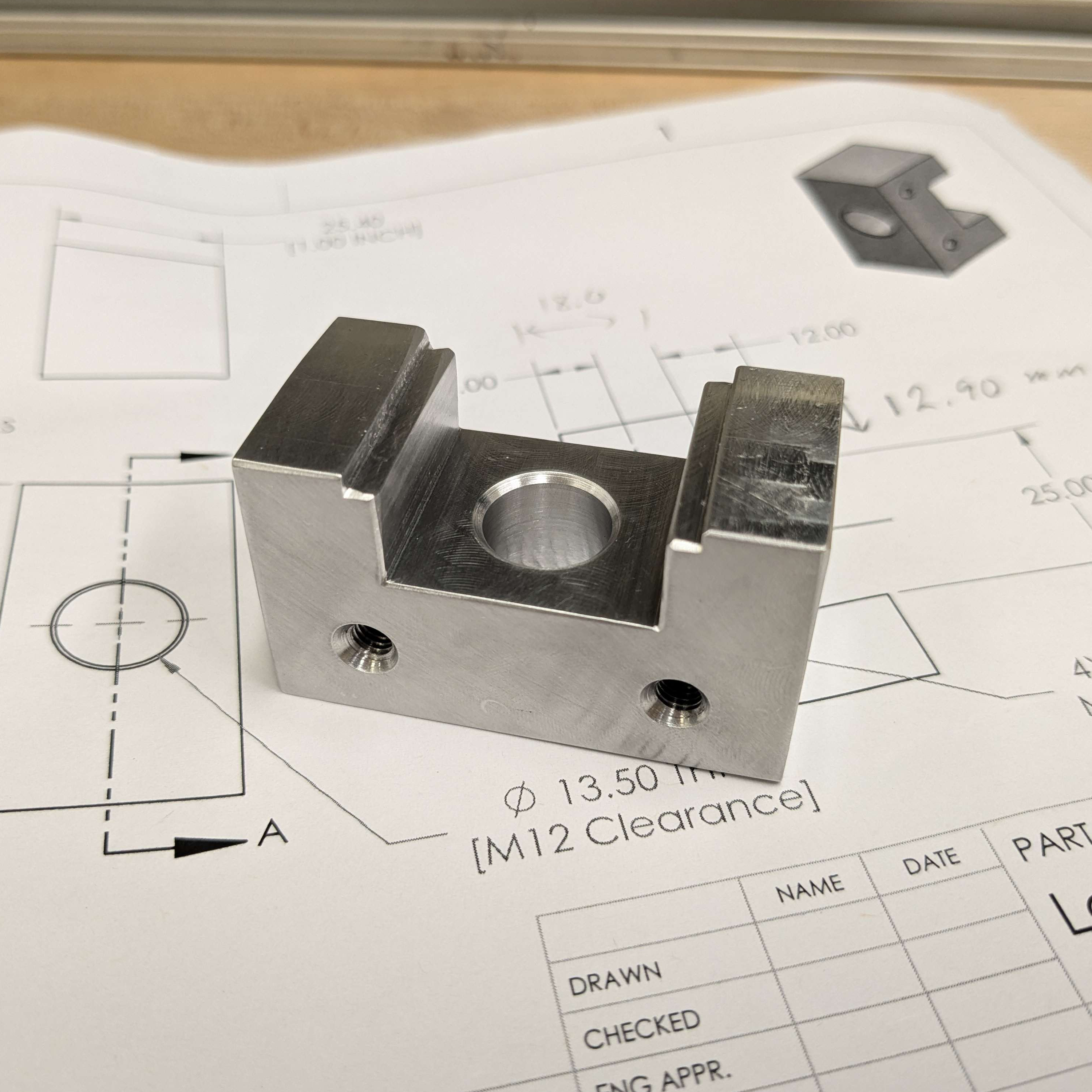

Finished Part

Finished Part
